| Luogo di origine: | Zhejiang, Cina |
|---|---|
| Marca: | Factory, OEM / ODM |
| Certificazione: | CE, ROHS, REACH, IP68 |
| Numero di modello: | Serie di SSCG |
| Quantità di ordine minimo: | 200 pezzi |
| Prezzo: | factory direct sales |
| Imballaggi particolari: | imballaggio standard (sopra richiesta è disponibile anche imballaggio speciale) |
| Tempi di consegna: | normalmente 9-14 giorni |
| Termini di pagamento: | T/T, L/C, Western Union |
| Capacità di alimentazione: | 500.000 pezzi al mese |
| Materiale: | Stainless Steel SS304, SS316, SS316L | inserto in plastica: | Poliammide 6 approvata UL (Poliammide 6.6) |
|---|---|---|---|
| parti di sigillatura: | NBR resistente all'olio (EPDM, FKM/FPM, gomma siliconica) | Infiammabilità: | UL94 V-2 |
| Filo: | Secondo la norma EN 60423 | Impermeabilità: | Valutazione IP68 |
| Specifiche: | M12x1,5~M50x1,5 | Funzioni: | Proteggi i cavi da un'eccessiva piegatura per evitare che si rompano |
Description & Application:

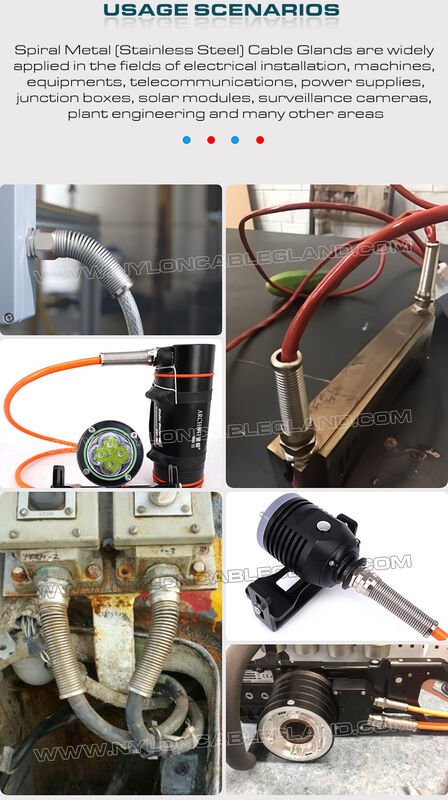

► Industrial Automation Equipment: In robots, automated production lines, CNC machine tools, and other equipment, cables need to move and bend frequently with the equipment. Anti-bend connectors effectively protect cable connection points.
► Outdoor and Humid Environments: Suitable for streetlights, lighthouses, yachts, and equipment exposed to rain or soil. Stainless steel offers excellent waterproof, dustproof, and corrosion-resistant (salt-resistant, acid and alkali-resistant) properties.
► Handheld Power Tools and Welding Equipment: Using anti-bend connectors at power cord leads in welding machines and other applications requiring frequent plugging, unplugging, and dragging can significantly extend cable life and prevent fatigue breakage.
► Medical Devices and Marine Industry: High-grade materials such as 316 stainless steel have strong waterproof and rust-proof capabilities and are commonly used for connections in medical devices and equipment used in marine environments.
► New Energy Industry: Cable connectors with high protective and bending resistance are also required in some servo motor control cabinets and new energy equipment.
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Specs: | M12x1.5 ~ M50x1.5 |

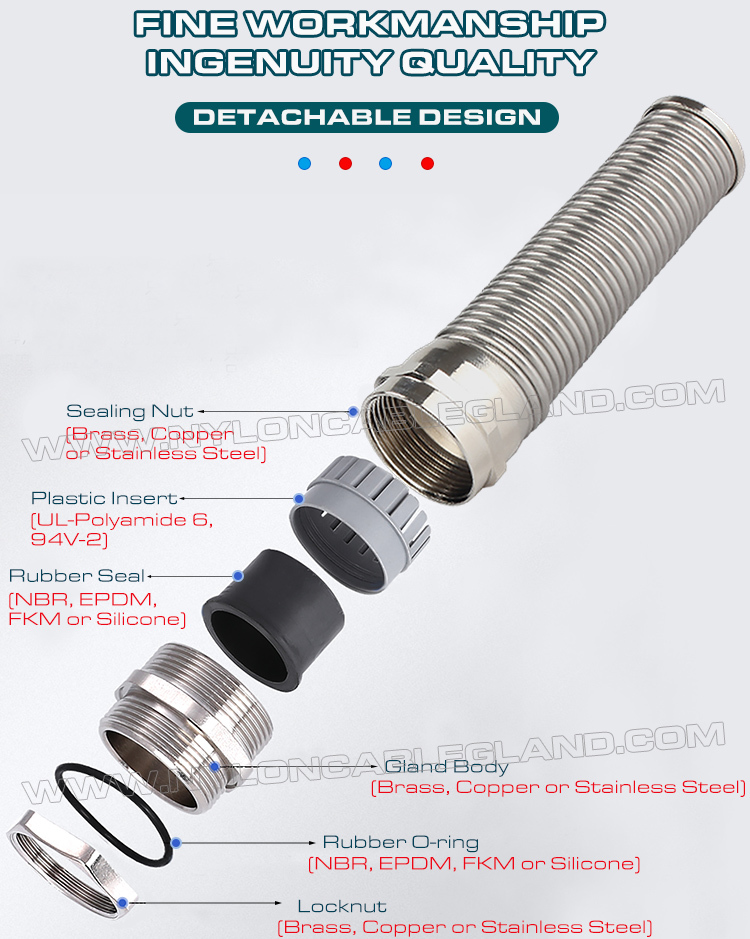

| Material: | Metallic parts are made from stainless steel 304, 316, 316L |
| Plastic insert is made from UL-polyamide 6, 94V-2 | |
| Sealing parts are made in NBR, EPDM, Silicone or FKM / FPM | |
| Surface: | Polishing threatment |
| Color: | Silver gray |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproofness: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Standard length (other lengths can be customized) |
| Thread type: | According to the standard EN 60423 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 500,000 pieces per month |
| Minimum quantity: | 200 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |
(1) 100 pieces per bag or 50 pieces per bag (2) special packaging can be customized as requested |
