| Luogo di origine: | Zhejiang, Cina |
|---|---|
| Marca: | Factory or OEM |
| Certificazione: | CE, ROHS, REACH, IP68 |
| Numero di modello: | M150x2 |
| Quantità di ordine minimo: | 50 pezzi |
| Prezzo: | The lowest prices from direct factory |
| Imballaggi particolari: | Packaging standard: 1 pezzo per borsa, l'imballaggio speciale può essere disponibile su richiest |
| Tempi di consegna: | 10-14 giorni |
| Termini di pagamento: | Western Union, t/t |
| Capacità di alimentazione: | 50.000 pezzi al mese |
| Materiale: | Acciaio inossidabile Inox 304/316/316L | Anello di sigillatura: | NBR, EPDM, silicone, FKM |
|---|---|---|---|
| inserto in plastica: | UL-poliamide 6, 94V-2 | Colore: | Grigio argento |
| Filo: | Filato metrico (EN 60423) | Protezione: | IP68 (assemblare l'anello O sulla scanalatura) |
| Caratteristiche: | Anti-invecchiamento, isolamento, anticorrosione, antiacido, impermeabile, ecc. | Funzione: | Per impianti elettrici |
| Brand name: | Factory or OEM |
| Place of origin: | China |
| Size: |

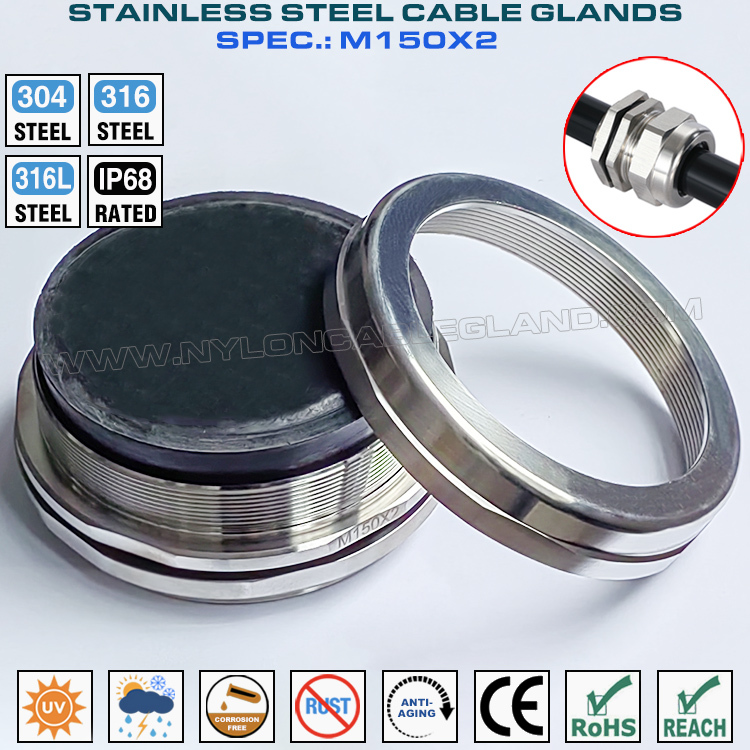

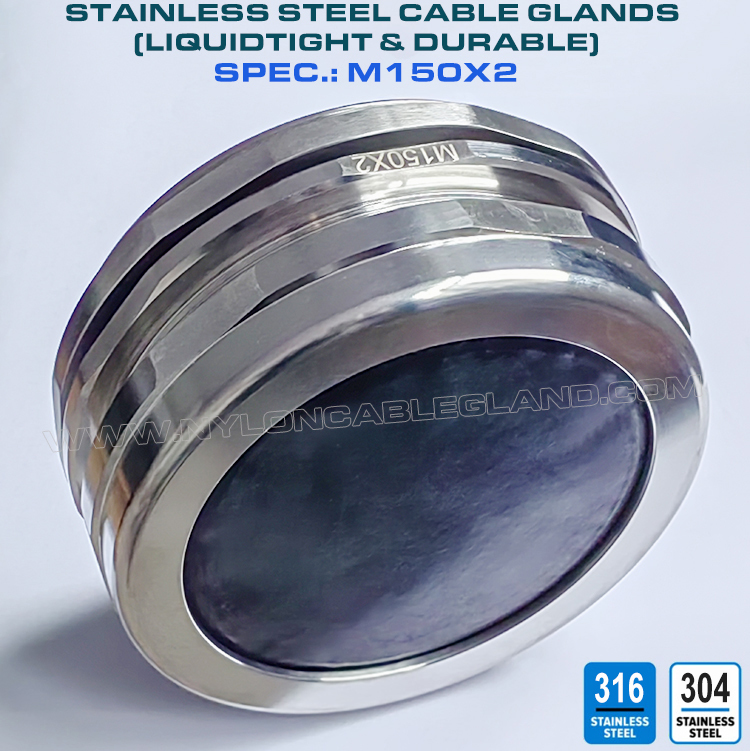

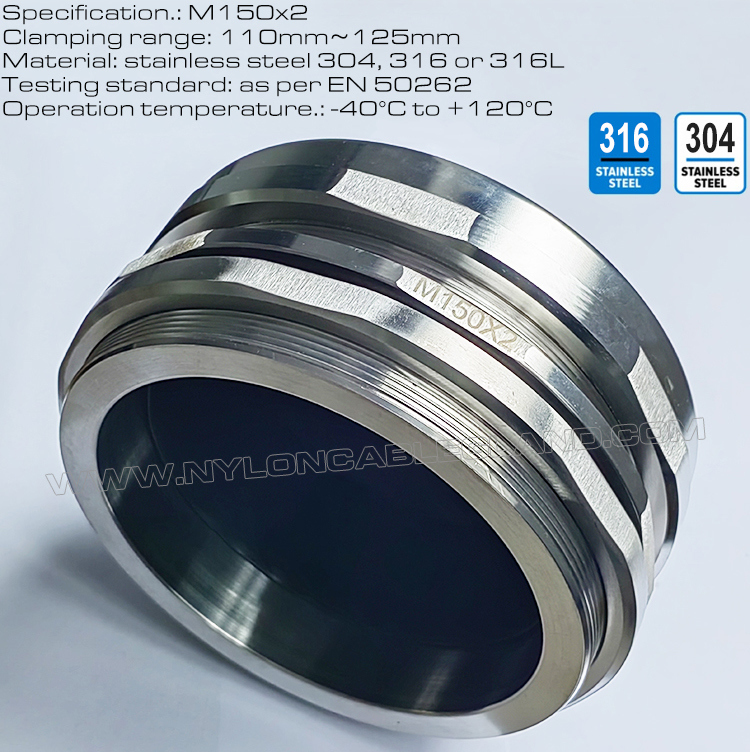

M150x2 (clamping range: 110~125mm) |

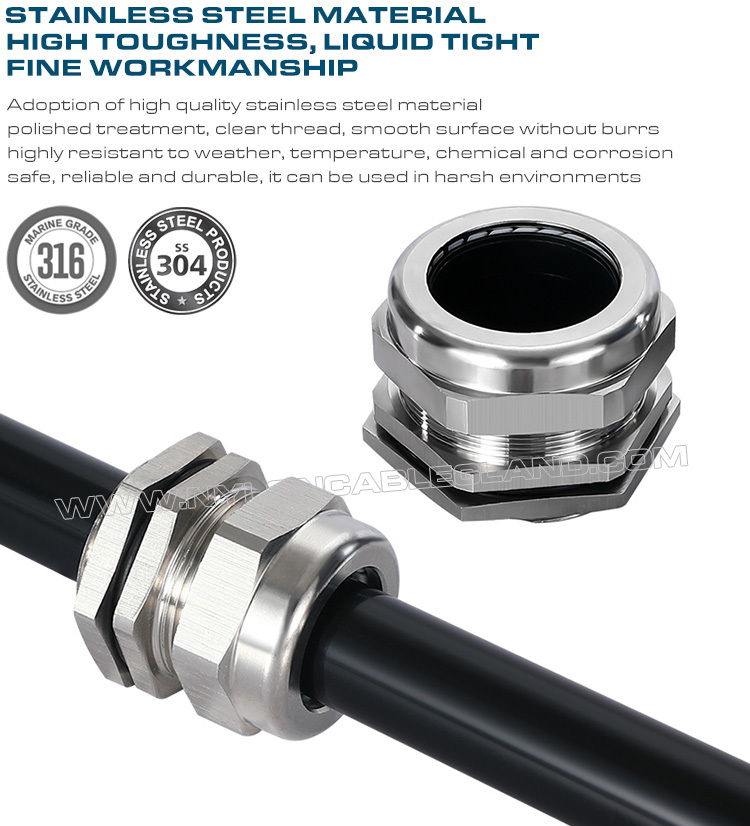

| Material: | Metallic parts are made in 304, 316 or 316L grade stainless steel |
| Plastic insert is made in UL-polyamide 6, 94V-2 | |
| Sealing parts are made in NBR, EPDM, Silicone or FKM | |
| Surface: | Polishing threatment |
| Color: | Silver gray |
| Certification: | CE, ROHS, REACH, IP68 |
| Waterproof rating: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | 20mm long, but other lengths can be customized |
| Thread type: | According to the standard EN 60423 |
| Working temperature: |
Static: -40 ℃ to +100 ℃, short-term: +120 ℃. Dynamic: -20 ℃ to +80 ℃, short-term: +100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 50,000 pieces per month |
| Minimum quantity: | 50 pieces |
| Sample available: | Free samples are available upon request |
| Delivery time: | Normally 8-10 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required |
| Export packaging: |
(1) 1 piece per bag. (2) special packaging can be customized as requested |
